OnlyOffice integration

filex can open Word/Excel/PowerPoint documents (and PDF, ODF, etc.) for in-browser editing and co-authoring by embedding a self-hosted OnlyOffice Document Server. Edits are saved straight back into the storage backend the file came from.

This integration is optional. If you don't configure it, filex works normally — Office files just open in the built-in read-only preview instead of an editor (see What happens if it isn't configured).

It works in every surface that embeds the explorer — the web app, the desktop app, and any host page using <filex-explorer> — because they all open the same editor component against the same endpoints. The desktop app also feeds it documents that are not on the server yet: double-click an Office file on your own disk and it is opened here and written back to that path (Opening documents from your computer). That is the case where configuring this is worth the most — a machine with no Office installed gets an editor for the documents already sitting on it. There is one thing to know about token-authenticated hosts: the editor config is fetched with the host's credentials, and a host that supplies its token as a function (the desktop app does, because the token changes when you switch accounts) was dropped before the request, which answered 401 and left the editor blank. Fixed after v0.13.4 — see Releases.

Three machines, three addresses

⚠ Read this before you fill in the Document Server URL. Almost every "it tests fine and then does not work" report is this and only this:

Address	Who has to reach it	How it is checked
the Document Server URL	your browser — it loads the editor's JavaScript straight from there	the admin page probes it from your browser
the same Document Server URL	the filex process — it polls `/healthcheck`	the Test button
the callback URL (or `FILEX_PUBLIC_URL` when it is empty)	the Document Server — it fetches the document and POSTs the save back	the Test button asks the Document Server to download a one-shot URL from filex and reports whether it arrived

These are three different machines, and an address that works for one can be useless to another. The classic case: on Docker or podman you type the container name, http://onlyoffice. filex reaches it, Test goes green, and your browser cannot resolve that name at all — so the editor fails with the same message as a missing configuration.

A green Test means "the filex process reached that URL". Nothing more. Since v0.37 the admin page says so, and probes the browser leg itself: it reports From the filex server: … and From this browser: … as two separate lines, and warns next to the field when the address is one a browser cannot load (a bare container name, or localhost on an install published elsewhere).

Since v0.38 the third leg is measured too. filex hands the Document Server's conversion endpoint a one-shot URL of its own and watches for the request to arrive, so the admin page answers the document server reached filex or it did not instead of declining to say. A Document Server that refuses the request's signature is reported as unmeasured, not as a broken route — that is a JWT problem, and sending you to the wrong address would be worse than saying nothing.

filex still warns about the shapes that certainly cannot work before you press anything: a callback address of localhost, 127.0.0.1 or 0.0.0.0, or a hostname filex itself cannot resolve.

Two commands that say which half is wrong

bash

# the browser leg — run this from a workstation, not from the server
curl -I <document-server-url>/web-apps/apps/api/documents/api.js

# the callback leg — run this from INSIDE the document server container
podman exec -it onlyoffice curl -I "$FILEX_PUBLIC_URL/healthz"

Both must answer 200. The first failing while filex's own Test passes is exactly the container-name case above. The second failing means saves will be lost even though the editor opens.

When the Document Server needs a different address from your users

FILEX_PUBLIC_URL builds two different things: every share link a person clicks, and the document URL the Document Server fetches. Those usually want the same address, and sometimes they cannot be the same — a Document Server on a container network may only reach filex as http://filex:5212, while your users need https://files.example.com.

Set the callback URL for that. It is the address the Document Server uses, and nothing else reads it:

bash

FILEX_PUBLIC_URL=https://files.example.com      # people, share links, e-mails
FILEX_ONLYOFFICE_CALLBACK_URL=http://filex:5212 # the Document Server alone

The same field is in the admin page under the Document Server URL, and applies live. Leave it empty — which is the default and what every single-address install wants — and the public URL is used, exactly as before.

How it works

Three pieces cooperate, all signed with one shared secret (HS256 / HMAC-SHA256):

 Browser                 filex                         OnlyOffice Document Server
   │  open doc  ───────────►│                                       │
   │  ◄── JWT-signed editor config (documentServerUrl + doc url)     │
   │  load iframe ──────────────────────────────────────────────────►│
   │                        │◄── GET signed fetch URL (source bytes) │  (1) fetch
   │                        │      /api/files/onlyoffice/fetch        │
   │      …user edits…      │                                        │
   │                        │◄── POST callback (JWT) on save ────────│  (2) save
   │                        │      /api/files/onlyoffice/callback     │
   │                        │──► write revision back to storage      │

Config — filex builds a JSON editor descriptor, signs it with the shared secret, and hands it to the embedded iframe. It contains a signed, short‑lived fetch URL the Document Server uses to pull the current bytes.
Fetch — GET /api/files/onlyoffice/fetch?...&sig=... streams the source to the Document Server. Public but unguessable (HMAC over node id + expiry) and time‑limited — no filex session needed, because the Document Server is a server, not the user's browser.
Callback — on save the Document Server POSTs to POST /api/files/onlyoffice/callback?node=<id> with a JWT; filex verifies the JWT, downloads the saved revision, and writes it back through the storage driver.

The shared secret configured in filex — on Settings → External services, or seeded from FILEX_ONLYOFFICE_JWT — must equal the Document Server's JWT secret. That is the entire trust relationship.

What a save does

A save-back is a write like any other write in filex, and since v0.34.0 it goes through the same shared post-write gate every other surface does. In order, the callback:

takes a version snapshot, so the revision it is about to replace stays recoverable from the file's history — and refuses the save if that snapshot cannot be taken, because losing history is not a reason to also lose the file;
writes the revision through the storage driver;
refreshes the node row's size, mime, etag and mtime from the driver;
runs the post-write gate: re-index (so content search returns the new text, not the old), thumbnail, a realtime change frame so a browser with the folder open updates instead of finding out on its next navigation, the canonical file.updated webhook event stamped meta.origin: "onlyoffice", and an antivirus scan (PROTECTION.md).

⚠ The event is file.updated and never file.uploaded: a save-back replaces a document that was already there. A subscriber that watched file.uploaded for edits needs to subscribe to file.updated as well.

⚠ The event carries no actor, and the in-app notification is therefore admin-visible rather than scoped to one person's bell. The callback is a public route — the document server posts it, not a signed-in browser — so there is no request user to attribute it to. It is the same treatment every other actorless write gets (the sync walk, the async ops worker). The webhook delivery is unaffected either way.

When the scan runs, and why the status code decides it

The document server tells filex which kind of save this is, and the two kinds get different answers:

Callback status	What it means	Scan
2 — ready for saving	Every editor closed the document and the server assembled the final revision. It arrives once per editing session, roughly 10 s after the last editor disconnects.	Immediately, like an upload. The bytes are final and nobody is still typing.
6 — force save	An interim save with the document still open. filex never asks for one and the document server does not send them by default (`autoAssembly` is off); an operator can switch them on, and then they repeat for as long as somebody keeps the document open.	Debounced — one scan per file per save window, the same treatment a Ctrl+S burst gets in the built-in text editor.

Statuses 1, 3, 4 and 7 write nothing, so they announce nothing.

⚠ On a default install this means exactly one scan per editing session, and it is not deferred: scanning a finished document on a timer would buy no coalescing (there is only one save to coalesce) and would leave it unscanned for up to a full window. The window is only worth paying for where saves actually repeat. With force-save switched on, a long session costs one scan per window while it is open plus the immediate scan of the final revision when it closes — deliberately, because a document server that dies mid-session never sends status 2 at all, and then the debounced scan of the interim bytes is the only one there will ever be.

The window itself is the setting on Admin → Protection (antivirus.save_scan_window_minutes, default 30 min) — it is one window, shared with the text editor, not a second knob.

Prerequisites

A reachable OnlyOffice Document Server (Community Edition is fine).
Three addresses that each work from the machine that needs them — read Three machines, three addresses first. It is the single most common cause of "it tested fine and then did not work".

Setup

1. Run the Document Server with a JWT secret

yaml

# docker-compose.yml (excerpt)
services:
  onlyoffice:
    image: onlyoffice/documentserver:latest
    environment:
      JWT_ENABLED: "true"
      JWT_SECRET: "a-long-random-shared-secret"   # keep this
      JWT_HEADER: "Authorization"
    ports:
      - "8080:80"

Pick a long random JWT_SECRET and keep it — filex needs the same value.

2. Point filex at it

Two ways, and either is complete on its own.

In the admin UI — Settings → External services. Fill in the URL and the JWT secret, press Test, save. The change applies immediately; filex does not need a restart. This is the right route when the Document Server lives in a separate compose file or you would rather not hand filex a secret through the environment.

In the environment (or the equivalent external_services.onlyoffice block in config.yaml):

bash

FILEX_ONLYOFFICE_URL=https://office.example.com   # Document Server base URL
FILEX_ONLYOFFICE_JWT=a-long-random-shared-secret  # MUST match JWT_SECRET above

Both are required. filex treats OnlyOffice as enabled only when both are set.

⚠ The environment wins on every restart. A service configured through env or config.yaml is re-asserted onto its stored row each time filex starts, because compose is declarative: editing FILEX_ONLYOFFICE_URL and restarting has to take effect. So an edit made in the admin UI to an env-pinned service applies now and is reverted at the next boot — the card in the UI is labelled "Set by the environment" when that is the case. Leave the variables unset if you want the UI to own the setting.

3. Make sure all three addresses work

The full picture is Three machines, three addresses; the short version:

Serve both filex and the Document Server over HTTPS in production. Browsers block an HTTPS page from loading an HTTP iframe (mixed content), so an HTTP Document Server behind an HTTPS filex will silently fail to load. The admin page names this case rather than reporting it as "unreachable".
The Document Server URL must be one a browser can open — not only one filex can reach from inside the container network.
FILEX_PUBLIC_URL must be resolvable from the Document Server container/host (it fetches source + posts callbacks there). In Docker, that usually means a real hostname or the compose service name — never http://localhost.

Then press Test on Settings → External services and read both lines it prints. From the filex server: reachable and From this browser: not reachable together mean the address is container-internal: the editor loads in the browser, so it will fail there.

That's it — reopen an Office file in filex and it should launch the editor.

Configuration reference

Env var	`config.yaml`	Required	Description
`FILEX_ONLYOFFICE_URL`	`external_services.onlyoffice.url`	yes	Document Server base URL (e.g. `https://office.example.com`)
`FILEX_ONLYOFFICE_JWT`	`external_services.onlyoffice.jwt_secret`	yes	Shared HS256 secret — identical to the Document Server's `JWT_SECRET`
`FILEX_ONLYOFFICE_CALLBACK_URL`	`external_services.onlyoffice.callback_url`	no	The address the Document Server uses to reach filex. Empty (the default) means `FILEX_PUBLIC_URL`. Set it only when those two must differ — see When the Document Server needs a different address

Both are optional in the sense that the admin UI can supply them instead — whichever way they arrive, the value the running process uses is the one in the external_services table, read on every request. GET /api/admin/external returns env_managed: true for a service the environment pins.

The signed fetch URL is valid for 1 hour by default.

Supported file types

The editor opens the standard OnlyOffice set, grouped into three document types:

Documents (word): doc, docx, docm, dot, dotx, dotm, odt, ott, rtf, txt, html, htm, epub, fodt, mht, xml, xps, pdf, wps, …
Spreadsheets (cell): xls, xlsx, xlsm, xlt, xltx, xltm, xlsb, csv, ods, ots, fods, et, ett, …
Presentations (slide): ppt, pptx, pptm, pot, potx, potm, pps, ppsx, ppsm, odp, otp, fodp, dps, dpt, …

An unknown extension returns 415 Unsupported Media Type — filex falls back to preview/download for those.

Creating new documents

+ New → New document makes an empty Word, Excel, PowerPoint or OpenDocument file and opens it in the editor that handles it.

⚠ The bytes do not come from the Document Server, and they do not come from LibreOffice either. They are minimal valid documents embedded in the filex binary (backend/internal/newdoc — XML parts zipped in memory), because :slim and the bare binary deliberately carry no external tools and a feature that works on one image and 500s on another is worse than one with a narrower promise. So a .docx can be created on an install with no LibreOffice anywhere near it.

What OnlyOffice decides is whether the type is offered at all. GET /api/files/capabilities publishes newdoc_types — every type this build can create, each as {ext, group, mime, requires} — and requires names the service the editor needs: "onlyoffice", "drawio", or empty for the built-in code and markdown editors. The client crosses that against the external block, so with no Document Server configured the six office formats (docx, xlsx, pptx, odt, ods, odp) are not in the picker and the dialog says why — "Office documents need a document server (OnlyOffice), which is not configured here." — rather than creating a file nobody on this install could then open.

⚠ The server states the dependency and the client resolves it, deliberately: an embedder may point at a document server this process cannot reach, so the client is the only place that knows the true answer. What it must not do is re-derive the dependency from an extension list of its own — that list rots the moment the registry grows a type.

The create itself is POST /api/files/manager?action=newfile with {path, name, type}, where type is one of the newdoc_types keys.

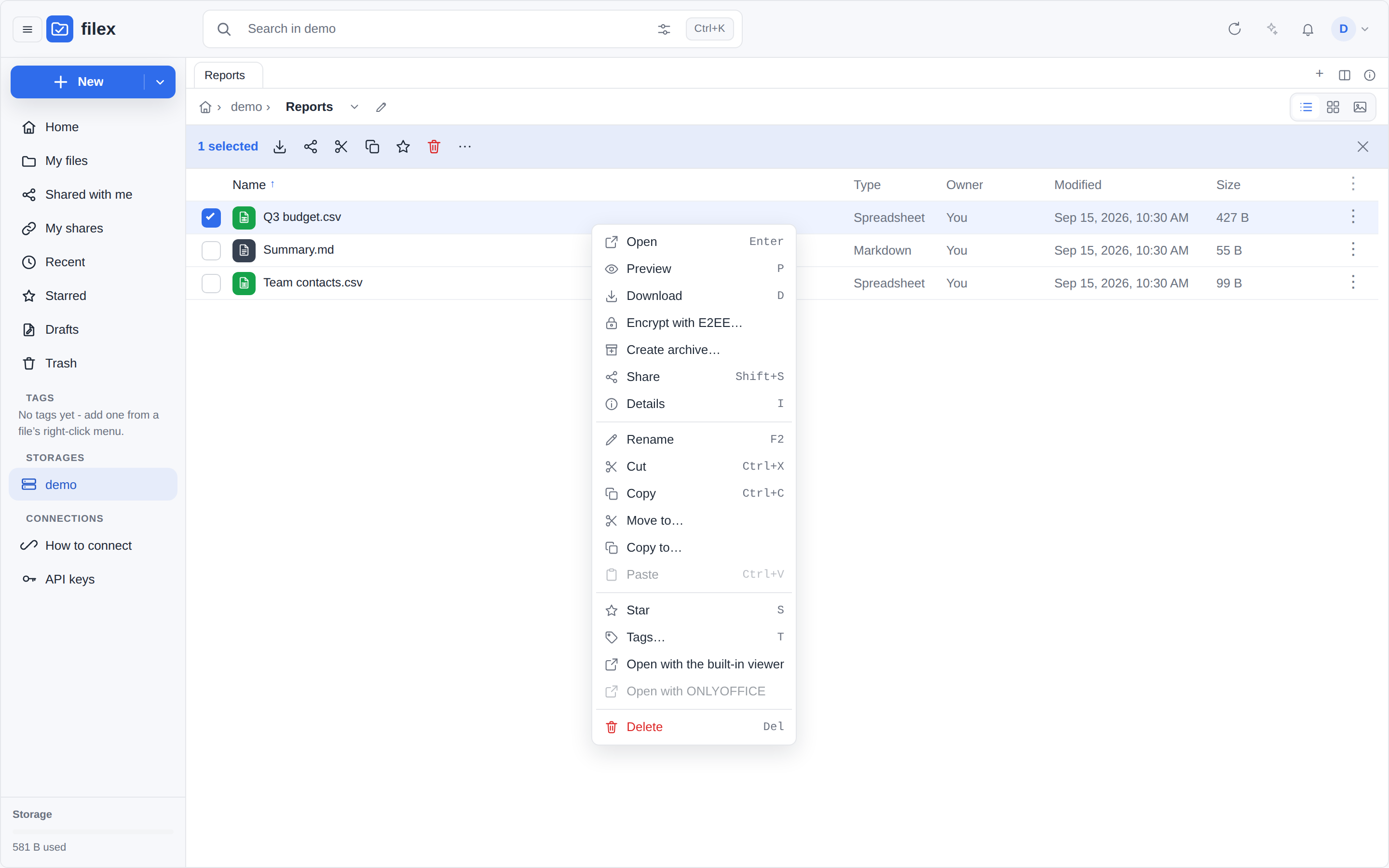

What happens if it's not configured

Nothing breaks. With no URL and secret — from either source:

filex reports OnlyOffice as disabled in its capabilities.
Office files open in the read-only preview (or download), not an editor.
+ New → New document offers only the types a built-in editor opens — Markdown, plain text, CSV, JSON, YAML, XML, HTML and the code formats — and names the missing service for the rest (see Creating new documents).
The editor endpoint returns onlyoffice: not configured if called directly.

You can add OnlyOffice later at any time — it's purely additive.

Failure modes & troubleshooting

Failure: "OnlyOffice not configured" / no Edit option

Only one (or neither) of URL and secret is set. Set both — in Settings → External services, which takes effect immediately, or as FILEX_ONLYOFFICE_URL + FILEX_ONLYOFFICE_JWT followed by a restart.

⚠ A URL with no secret is the usual cause, and it is easy to miss: the Test button probes /healthcheck and answers "reachable" for a Document Server that is perfectly healthy, while the editor still refuses because filex has nothing to sign the descriptor with. Reachable is not the same as configured.

Failure: editor shows "Download failed"

Read the log first — it names the reason. The Document Server's message is the same sentence for five different causes, so filex writes the cause on its own side. Open the document once and look for:

level=WARN msg="onlyoffice: the document server could not download this file"
      node=42 storage=3 reason="..." err="..."

`reason`	What it means
`signature refused`	The link expired, or the JWT secret changed under a running editor. See the token section below.
`no catalogue row for this document`	The node was deleted between opening the editor and the download.
`the storage could not be opened`	Wrong endpoint, wrong credentials, or the backend is down — this is about the storage, not about OnlyOffice.
`the object is not on the storage`	The catalogue has the row, the bucket does not have the object. Run a sync.
`reading the object failed`	The storage answered, then failed mid-read. `err` carries the driver's own message.

No line at all means the request never arrived, and the problem is the third address — the route from the Document Server back to filex. Press Test in Settings → External services and read the third leg: it reports reached, did not reach, or could not be measured, and the last of those is not a pass. See Three machines, three addresses.

⚠ A private address is refused, not unreachable. Since ONLYOFFICE Docs 7.4 the Document Server refuses by default to download from a private IP address, and a docker or podman network (10.x, 172.16–31.x, 192.168.x) is exactly that. It then gives up before sending anything: filex logs nothing, the editor says "Download failed", and the Test button reports error -4 — the same picture as a route that does not exist. The Document Server's own log tells them apart:

... is not allowed. Because, It is private IP address

If that line is there, allow private addresses on the Document Server and restart it — either the environment variable on its container:

bash

ALLOW_PRIVATE_IP_ADDRESS=true

or, in its local.json:

json

{ "services": { "CoAuthoring": { "request-filtering-agent": { "allowPrivateIPAddress": true } } } }

Failure: "token" error on open

The two JWT secrets don't match. The secret filex holds — the external_services row, whatever put it there — must equal the Document Server's JWT_SECRET. A mismatch makes the Document Server reject the config (or filex reject the callback) with a token error. ⚠ Correct it on whichever side is wrong: an edit in Settings → External services takes effect on the next request with no filex restart, while FILEX_ONLYOFFICE_JWT is re-asserted onto the row at boot and therefore needs one. The Document Server needs a restart either way.

Failure: document won't load or save

Almost always a reachability / URL problem — and which of the three addresses is wrong is the whole diagnosis. Open Settings → External services and read the two probe lines plus any warning next to the URL field; the two commands answer the same question from a shell.

Won't load (blank iframe / "editor cannot connect"): the browser can't reach FILEX_ONLYOFFICE_URL, or it's HTTP behind an HTTPS filex (mixed content). Serve the Document Server over HTTPS on a real hostname.
Won't fetch source ("Download failed"): the Document Server can't reach the callback address (FILEX_ONLYOFFICE_CALLBACK_URL, or FILEX_PUBLIC_URL when it is empty). Press Test: the third line now says whether the Document Server managed to download a probe file from filex, and prints the exact URL it was given. Make that URL resolve from the Document Server's network — or, when it cannot, set the callback URL to one that does — and check that a reverse proxy forwards /api/files/onlyoffice/fetch to filex. ⚠ A filex log with no GET /api/files/onlyoffice/fetch line after the editor opened is this failure: the request never arrived.
Edits aren't saved: the Document Server can't POST the callback to /api/files/onlyoffice/callback. Same address and same fix — the save goes where the fetch came from. Check the filex logs for callback errors (onlyoffice: ...).

Failure: 415 on open

Unsupported extension (see the type list above). Expected — use preview/download.

Failure: "signature expired"

The signed fetch URL is older than its TTL (1h). Reopen the document to mint a fresh URL. (This only appears if the Document Server retries a stale fetch much later.)

Security notes

The fetch URL is public but signed (HMAC over node id + expiry) and expires — a leaked URL only exposes one node for a short window.
The callback is authenticated by JWT — filex validates the Document Server's token before writing anything back, and only acts on the "ready to save" / "force save" statuses.
The shared secret is the whole trust boundary. Treat it as one wherever it lives — an env file with chmod 600 and not committed, or the stored row, which GET /api/admin/external redacts to "***" and never returns.
